DIATONE MAMBA STACK APP F722 MK1 F55_BL32

  • Sale
  • Regular price $169.95
Tax included. Shipping calculated at checkout.


The Diatone Mamba APP F722 MK1 FC 55A Stack brings BIG power all in a 30.5x30.5 mounting size! This stack can push 55A all while bringing you the latest features, including WiFi capabilities with the SpeedyBee App! This is the 128K version.

FEATURES:

  • Built-In WiFi with the SpeedyBee App
  • 128K Firmware

SPECIFICATIONS:

MAMBA APP F722 MK1 FC

  • LED indicator: Blue&Orange for FC Status, Green 9V, White 5V, Red 3.3V
  • BEC: 3.3V 0.5A & 5V 3A (System Power) & 5V 3A(LED) & 9V 3A
  • LED Controller: BF LED/MB LED (4 Set 2812 LED)
  • MCU: 216MHz STM32F722RET6
  • ESC Soft: Dshot300/600/1200
  • Mounting Pattern: 30.5mm/M3
  • Blackbox: 16M Flash Memory
  • Input: 3~6S Lipo (12.6~25V)
  • WIFI: SpeedyBee APP
  • ESC Telemetry: RX6
  • TVS Protection: Yes
  • Smart audio: Yes
  • IMU: MPU6000
  • Barometer: No
  • OSD: BF OSD
  • Uarts: 6Set
  • Buzz: Yes


F55 55A 3-6S 4-in-1 128K ESC

  • Input Voltage: 3~6S Lipo (12.6V~25V)
  • Target: BLHeli_32 MAMBA F55_128K
  • Mounting: 30.5×30.5mm, M3
  • Continuous Current: 55A
  • ESC Dshot300/600/1200
  • PWM Range: 24-128K
  • TVS Protection: Yes
  • Burst Current: 65A
  • BEC: NO

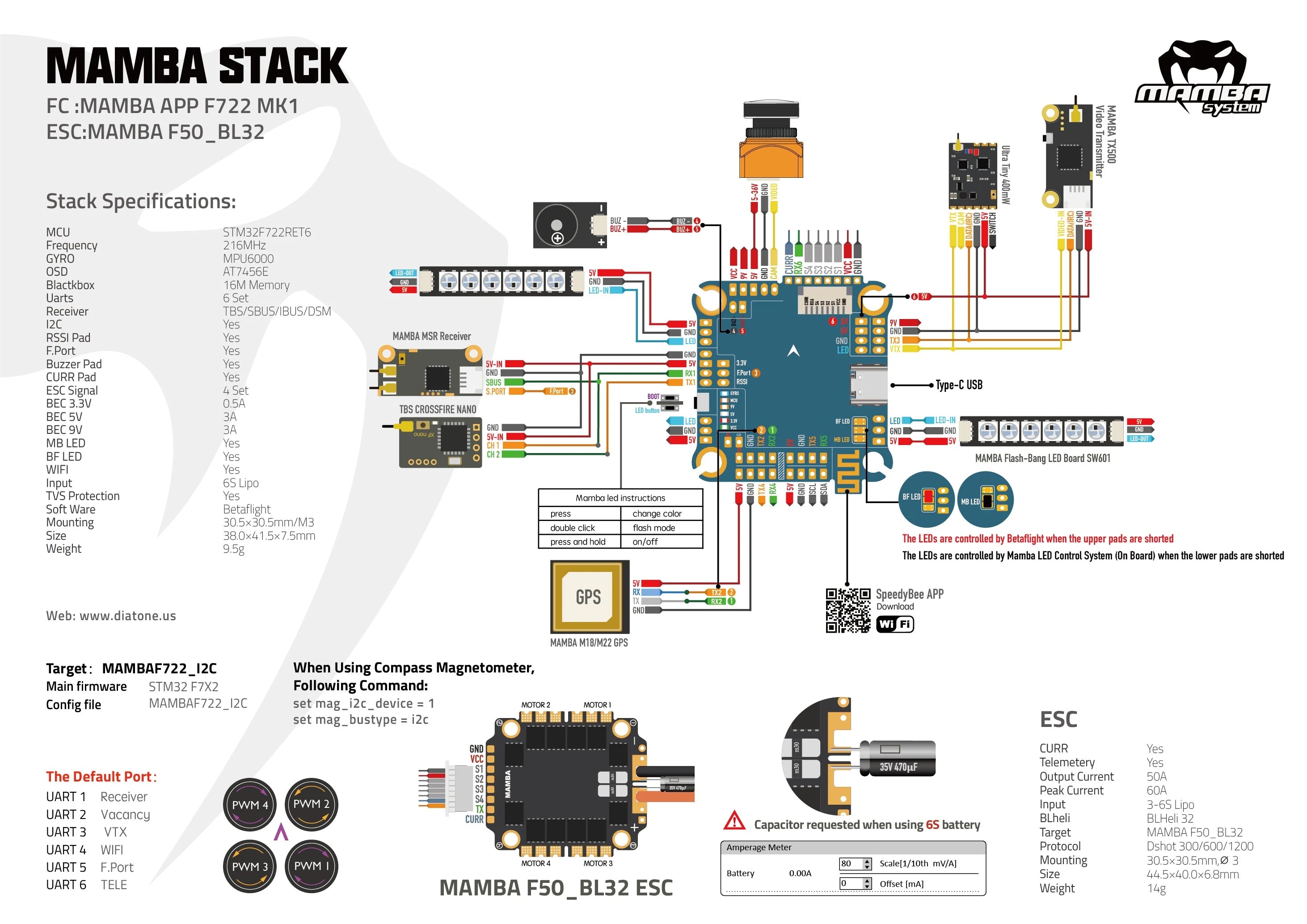

Diatone Mamba Stack APP F722 MK1 Flight Controller + 55A 3-6S F55 128K ESC 30.5x30.5mm

INCLUDES:

  • 1x High Frequency 470uF/35V
  • 2x 8pin sh1.0
  • 1x 12AWG 100mm
  • 1x AMASS Original XT60
